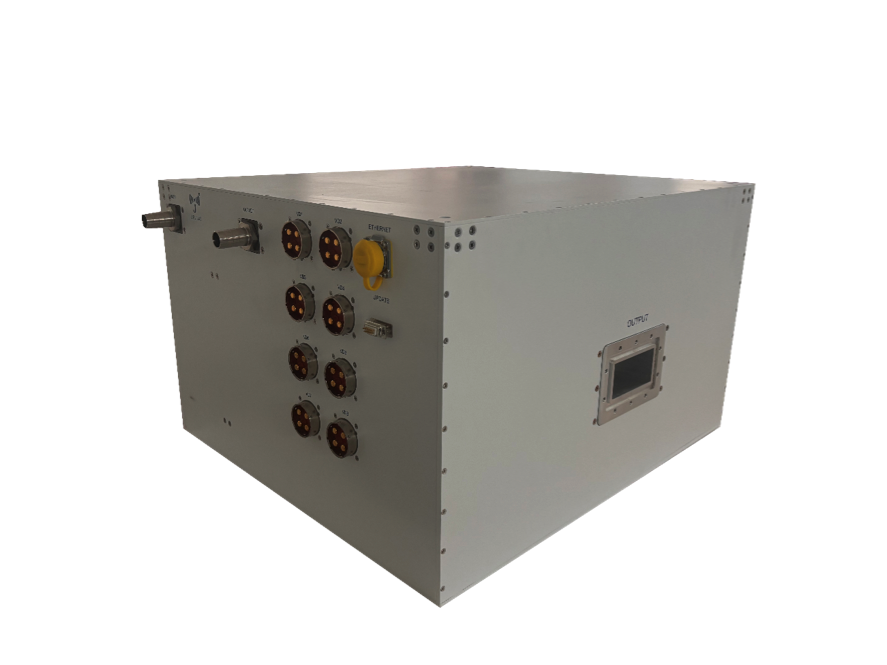

Solid State Microwave Power Generator
JLPA-2450-15KW-ST
Description ：
The JLPA-2450-15KW-ST microwave solid-state split-type power source can operate continuously and trouble-free for over 40,000 hours, perfectly solving the problem of unstable continuous operation of solid-state sources in extreme industrial environments. The weight of its auxiliary amplifier section has been reduced to under 50 kg, lowering the servo weight requirement for industrial equipment that needs axis movement. The device is widely used in MPCVD, carbon material production, optical fiber preforms, and other industrial and scientific research fields.
- Main Features
- main features
1. Split-type design, flexible for various applications.
2. Key cable connections using aviation plugs, stable and reliable.
3. Extreme weight reduction of the amplifier section, ideal for weight sensitive moving axes in industrial equipment.
4. Numerous extreme environment and lifetime tests ensure military grade quality.
5. Excellent thermal design: key modules use high thermal conductivity pure copper baseplates.
6. Elegant industrial design, clean and generous appearance.
7. Supports various communication protocols, user friendly software interface.
8. Fast overcurrent and overload protection mechanism for unexpected situations.
9. EMI electromagnetic compatibility design ensures normal operation even in harsh electromagnetic environments.
2. Key cable connections using aviation plugs, stable and reliable.
3. Extreme weight reduction of the amplifier section, ideal for weight sensitive moving axes in industrial equipment.
4. Numerous extreme environment and lifetime tests ensure military grade quality.
5. Excellent thermal design: key modules use high thermal conductivity pure copper baseplates.
6. Elegant industrial design, clean and generous appearance.
7. Supports various communication protocols, user friendly software interface.
8. Fast overcurrent and overload protection mechanism for unexpected situations.
9. EMI electromagnetic compatibility design ensures normal operation even in harsh electromagnetic environments.
- Product parameters
- Product parameters
| Items | Parameters |
| Operating frequency | 2450 MHz |
| Frequency error | ±50 ppm |
| Modulation capability | CW/PULSE |
| Saturated power output | 71.8 |
| Output power stability | 3% |
| Output power range | 40 -71.8 dBm |
| Spurious @pout=60dBm | 60 dBc |
| Harmonic distortion @pout=60dBm | 20 dBc |
| SWR | 4 VSWR |
| RF output type | BJ26 |
| AC power | 380V，50-60Hz，three-phase |
| Efficiency @pout=60dBm | 50%-59% |
| Ambient temperature | -5-+40 |
| Weight | ≤60Kg |

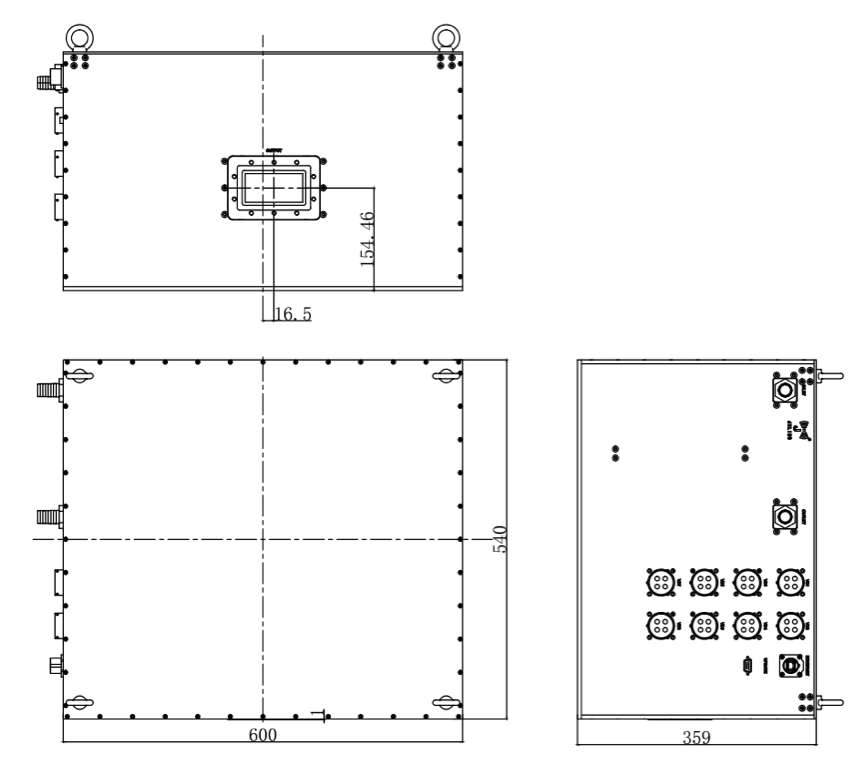

| Size | L540mm×W600mm×H359mm |
| Cooling | Liquid cooling |
| 供电电压 | 380V |
