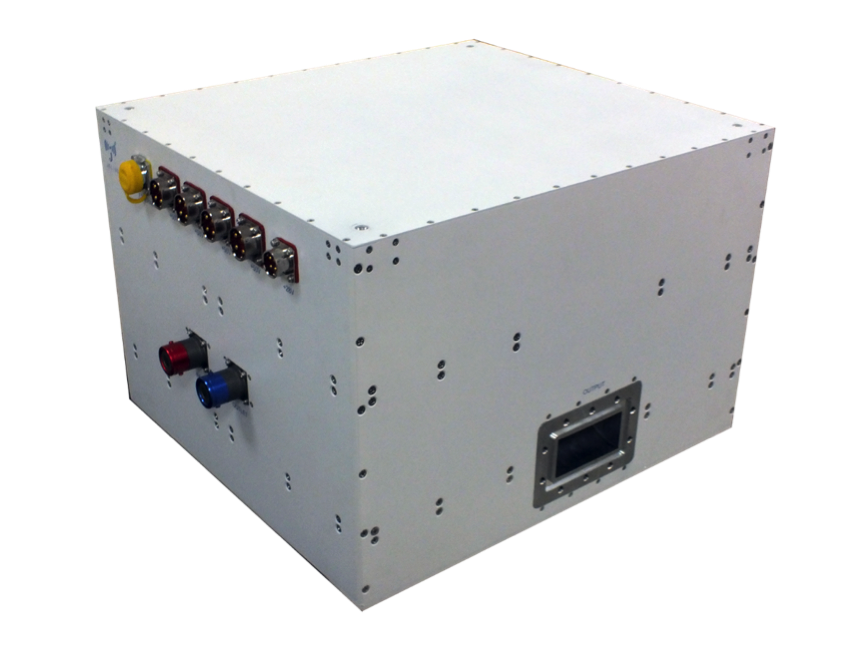

Solid State Microwave Power Generator
JLPA-2450-10KW-ST
Description ：
The JLPA-2450-10kW-ST split-type microwave solid-state power generator can operate continuously and failure-free for over 40,000 hours, effectively resolving the instability issues of solid-state generator in extreme industrial environments requiring continuous operation. The equipment weighs less than 50 kg, reducing the servo motor load for industrial equipment requiring axis movement. The device is widely used in industrial and scientific research fields such as MPCVD and optical fiber preform manufacturing.
Main Features
Product Parameters
Main Features
main features

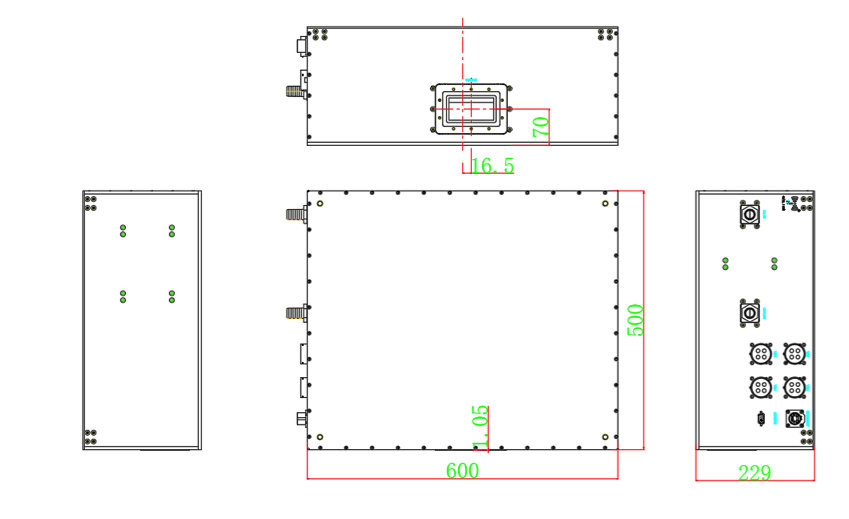

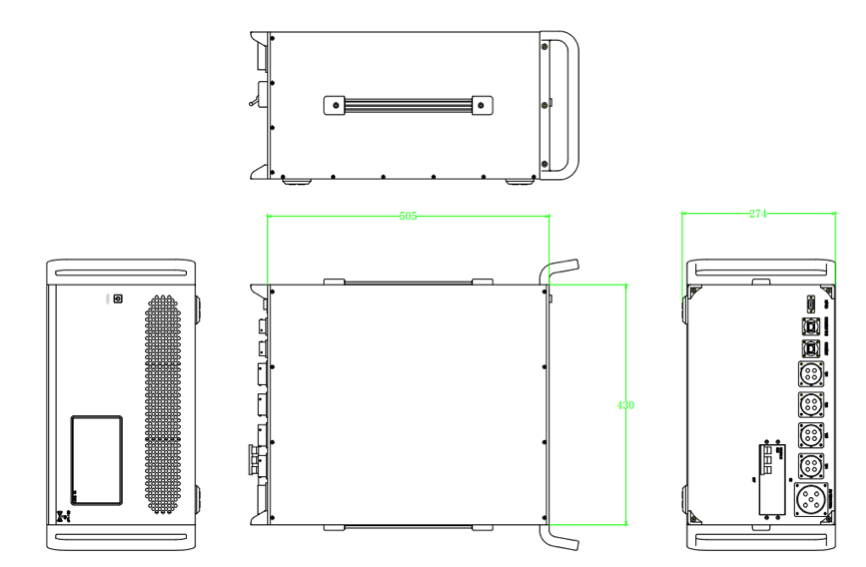

  • Split-type design:Enables flexible application across diverse scenarios.
  • Aviation connectors for critical cables: Ensures stable and reliable connections.
  • Extremely lightweight amplifier: Significantly benefits industrial equipment by minimizing moving axis load requirements.
  • Rigorous lifespan and environmental testing: Meets military-grade standards for durability and reliability.
  • Advanced thermal management: Key module baseplates utilize high thermal conductivity pure copper.
  • Refined industrial design: Features a clean, streamlined, and aesthetically pleasing appearance.
  • Comprehensive communication protocols & user-friendly interface: Supports various protocols with intuitive software interaction.
  • Robust protection mechanisms: Includes thorough over-current and overload safeguards for unexpected conditions.
Product parameters
Product parameters
Items Parameters Notes
Operating frequency 2450 MHz
Frequency error ±50 ppm
Modulation capability CW/PULSE
Saturated power output 70 dBm
Output power stability 3%
Output power range 40 -70 dBm
Spurious @pout=60dBm 60 dBc
Harmonic distortion @pout=60dBm 20 dBc
SWR 4 VSWR
RF output type BJ26
AC power 380V，50-60Hz，three-phase
Efficiency @pout=60dBm 40%
Ambient temperature +5-+40
Weight ≤50Kg
Size Liquid cooling
Cooling 380V
